RoboDK TwinTool

Introduction

With RoboDK TwinTool calibration you can automatically calibrate the tool center point (TCP). Industrial robots are highly repeatable, but not accurate. Therefore, the accuracy of an industrial robot can be improved through robot and tool calibration. Without calibration, robot accuracy highly depends on the robot brand and model.

Robot Automatic Calibration TwinTool - Image 1    Robot Automatic Calibration TwinTool - Image 2

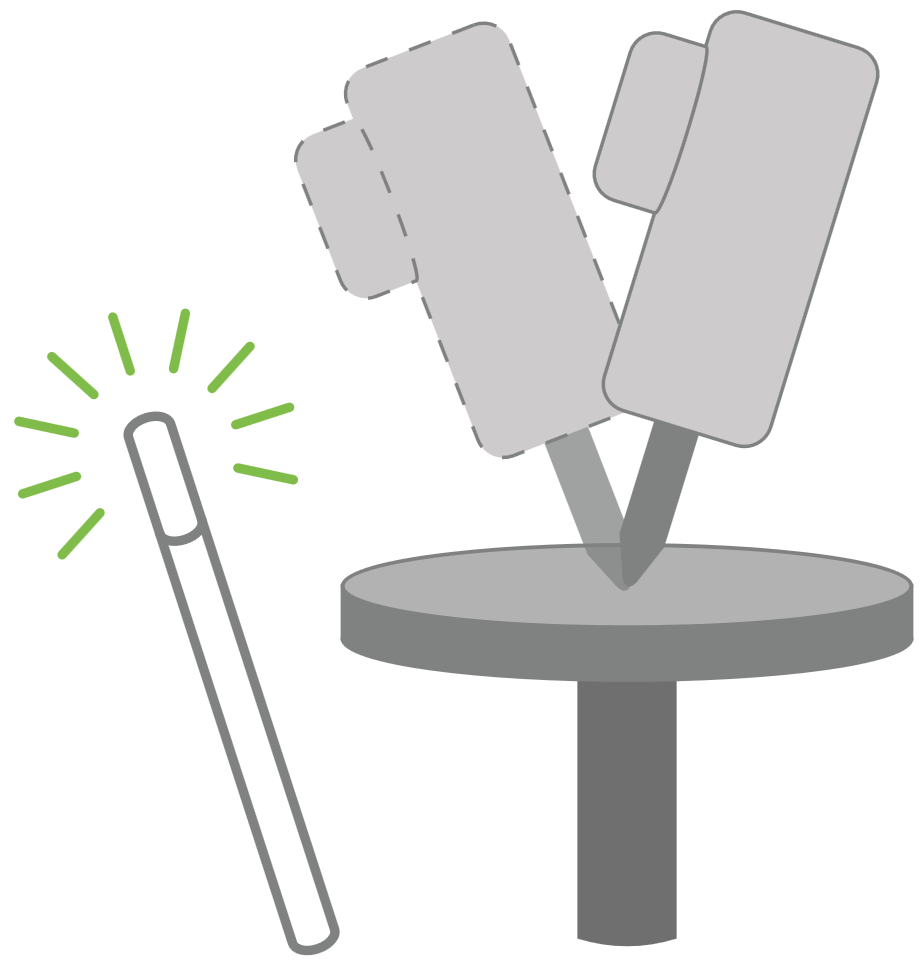

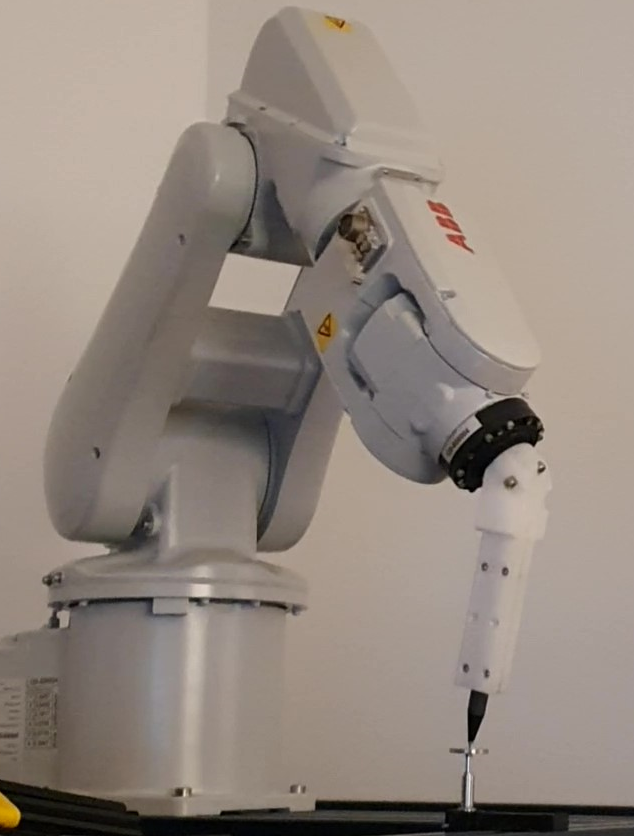

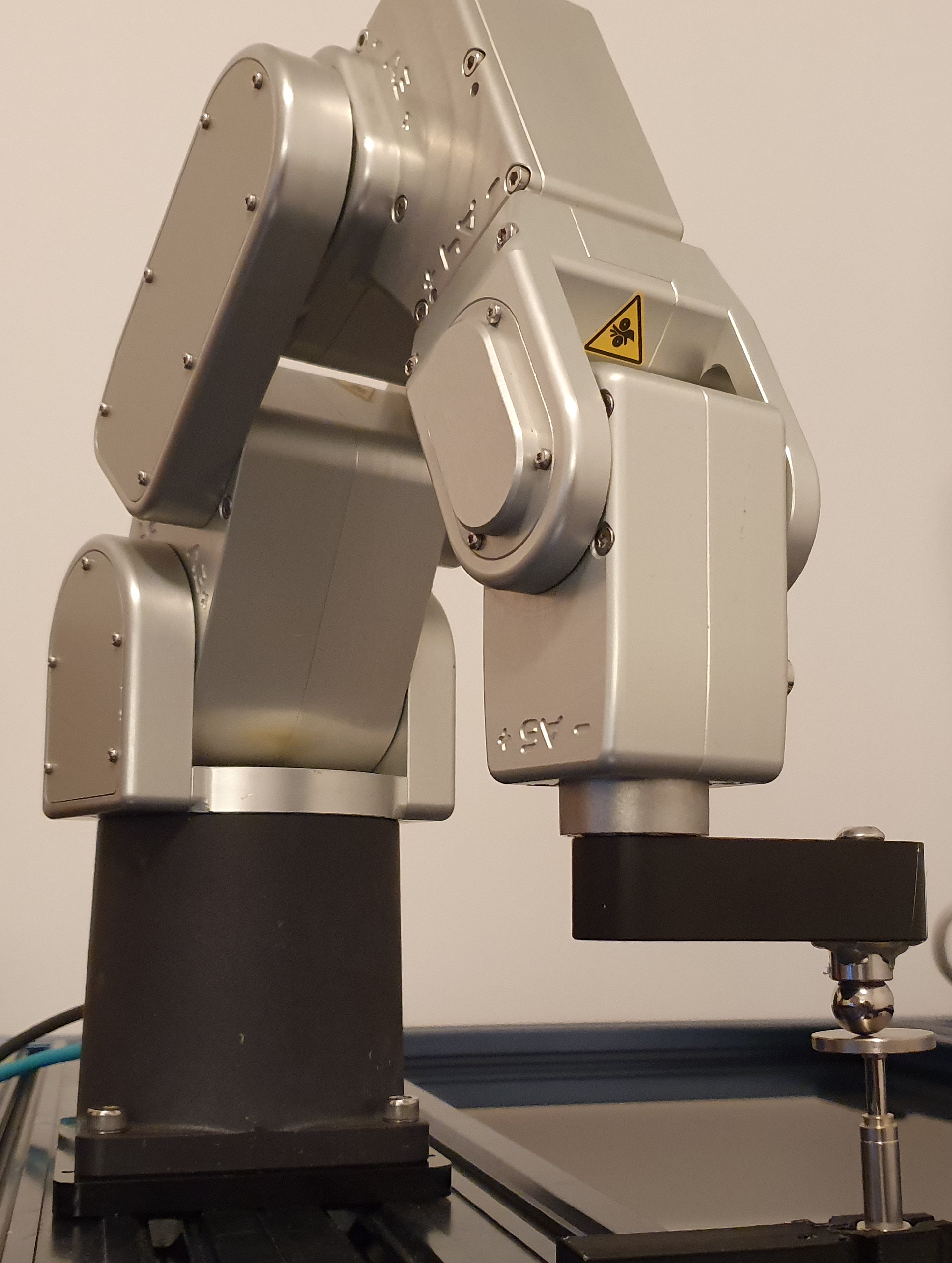

RoboDK TwinTool can be used to calibrate and validate the tool center point (TCP). The TwinTool can accurately calibrate the TCP for tools with spherical or conical geometries.

1.Spherical toolsThe center of the tool is calibrated

2.Conical tools The tip of the tool is calibrated

Requirements

You must install the RoboDK TwinTool App and have a compatible sensor to perform the automated tool calibration.

Make sure to have the following:

1.One or more robot arms.

2.A compatible dial indicator (also known as LVDT or linear gage).

3.RoboDK software must be installed and an appropriate license for automated robot calibration must be available.

4.You need compatible robot drivers for your robot controller.

5.Install the RoboDK TwinTool App:

a.Download the RoboDK TwinTool App (contact RoboDK for a download link)

b.Double click the file to install the app and open it in RoboDK.

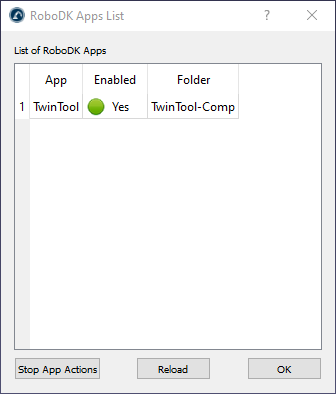

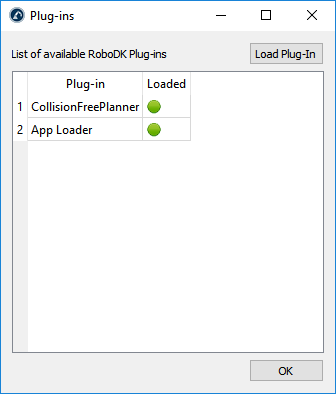

c.Select ToolsApps and double click on TwinTool to see the TwinTool toolbar and menu.
If you are unable to see the TwinTool app you should close RoboDK and start RoboDK again with administrator privileges to properly install the app.

Robot Automatic Calibration TwinTool - Image 3

Robot Automatic Calibration TwinTool - Image 4

Robot Automatic Calibration TwinTool - Image 5

Linear gage sensor

RoboDK TwinTool supports multiple linear gage sensors, including Keyence, Mitutoyo, Sylvac and others. Some communication protocols include USB, Ehternet/IP and RS232. An approximated price for an industrial grade linear gage sensor is 1,500.00 Euros.

The linear gage sensor should have an accuracy of 0.005 mm or better and a travel of 10 mm or more. It is recommended to have a measurement frequency of 50 samples per second or more. This sensor is not provided or sold by RoboDK. We recommend contacting your local distributor to supply this sensor required to use RoboDK TwinTool.

The following list shows a sample order for a Keyence linear gage:

   Keyence GT2-P12 - Pencil type gage

   GT2-UB1 - USB connection unit

   OP-87716 - Cable extension

   OP-76875 - Suggested mounting bracket for the gage

   25 mm flat contact point with M2.5x0.25 thread needed (not provided by Keyence)

The following list shows a sample order for a Mitutoyo linear gage:

   Mitutoyo 542-191 - LG 100 gage

   Mitutoyo 542-081A - EJ Counter + AC

   Mitutoyo 21HZA149 - USB interface (RS232 also supported)

   25 mm flat contact point with M2.5x0.25 thread needed (not provided by Mitutoyo)

Calibration Setup

To calibrate the tool (TCP) using TwinTool you need to load the robot in RoboDK and make sure the sensor and the robot are connected. You can optionally model the cell by adding the 3D models of objects and tools. This will allow to automatically avoid collisions.

1.Load the robot:

a.Select FileOpen online library. The online library will show up in RoboDK.

b.Use the filters to find your robot.

c.Select Open to automatically load the robot in your RoboDK station.

d.Alternatively, download the robot file directly from the library (https://robodk.com/library) and open the file with RoboDK (the .robot file).

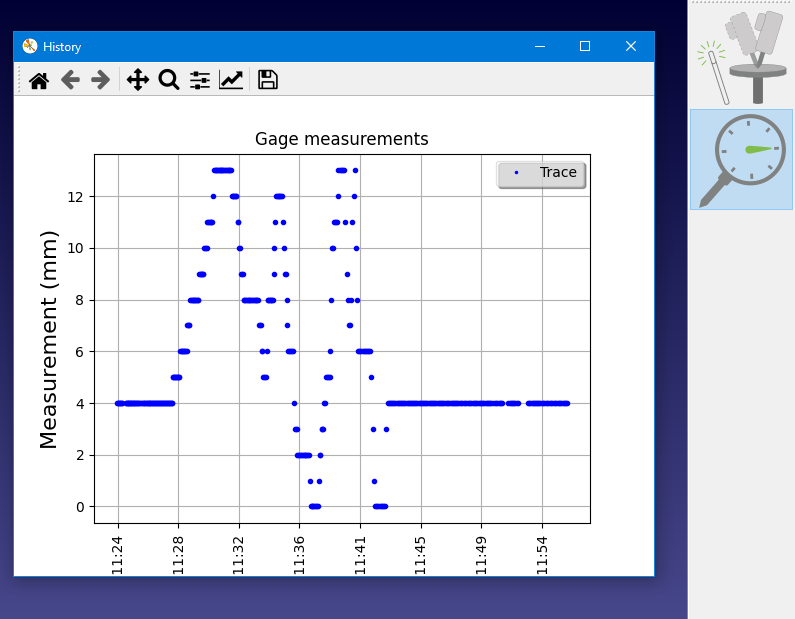

2.Connect the sensor:

a.Connect the sensor to your computer.

b.Select TwinToolRobot Automatic Calibration TwinTool - Image 6 Measure.

c.Make sure the sensor is measuring and measurements are stable.

Robot Automatic Calibration TwinTool - Image 7

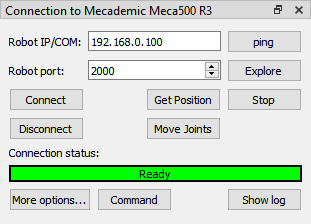

3.Connect the robot:

a.Select ConnectConnect robot.

b.Enter the robot IP and port.

c.Select Connect.

Robot Automatic Calibration TwinTool - Image 8

4.Select Get Position from the robot connection panel. This step will update the position of the robot in RoboDK.

Customized setup

You can optionally follow these steps to properly model the 3D environment of you cell.

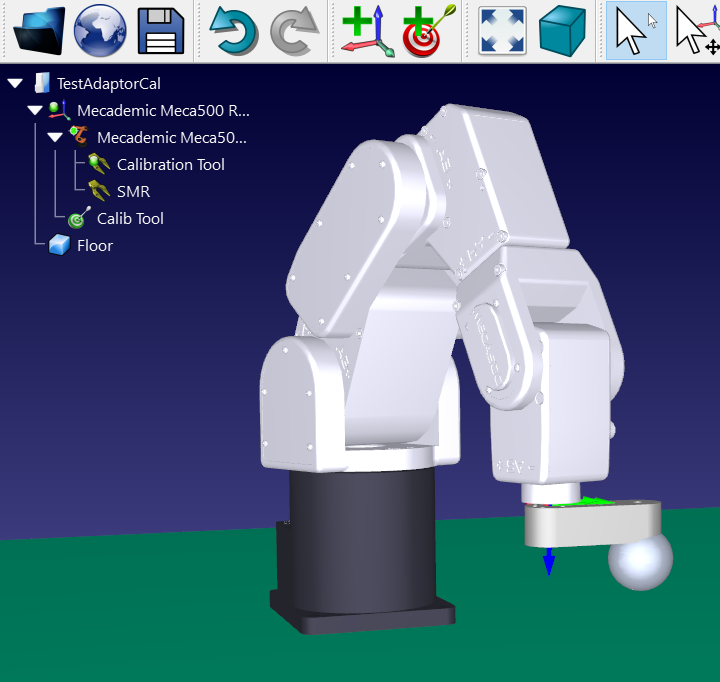

1.Load the 3D model of your tool and create a tool in RoboDK. More information in the create tool section.

2.Load any 3D files to model the cell. You can load 3D STEP, IGES, STL files. More information in the getting started section.

Robot Automatic Calibration TwinTool - Image 9   Robot Automatic Calibration TwinTool - Image 10



Calibration Wizard

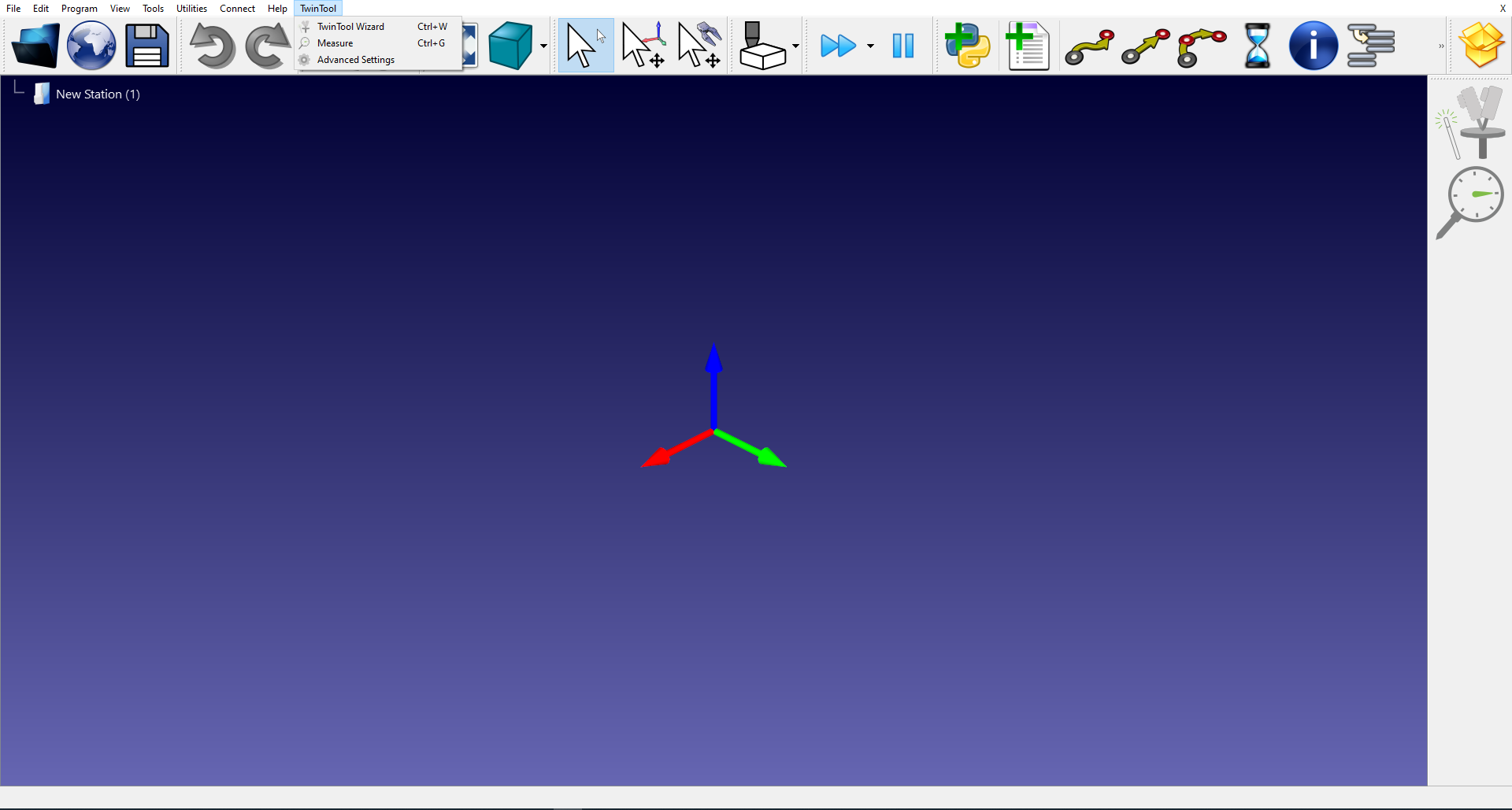

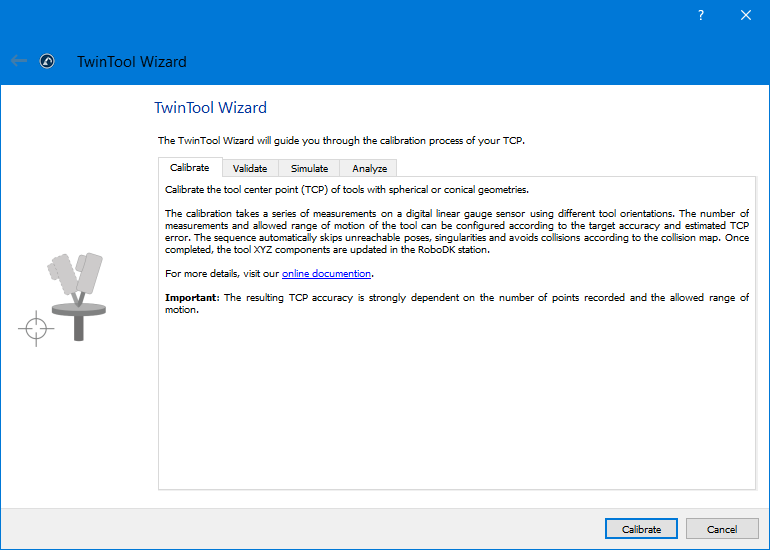

To start the calibration procedure, simply select TwinToolRobot Automatic Calibration TwinTool - Image 11 TwinTool Wizard.

After launching the wizard, you will be guided through the Robot Automatic Calibration TwinTool - Image 12 Calibration, Robot Automatic Calibration TwinTool - Image 13 Validation, or Robot Automatic Calibration TwinTool - Image 14 Simulation setups. This includes setting up the connection to the sensor, ensuring a valid state of the robot and review of key parameters. Follow the steps on screen and refer to the tool tips if you need additional details.

Robot Automatic Calibration TwinTool - Image 15

Calibration Results

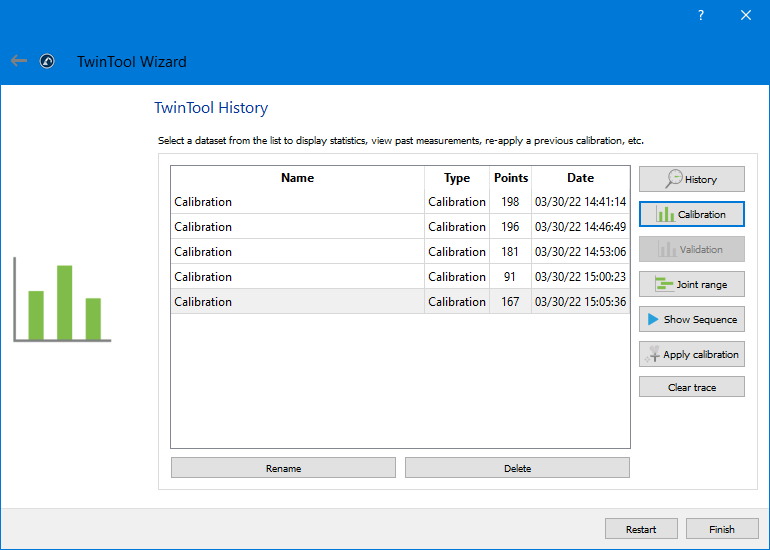

After the calibration sequence completes, you will be directed to the Robot Automatic Calibration TwinTool - Image 16 Analyze tab of the wizard. From there, you can visualize current and previous calibrations and validations, delete or re-apply calibrations, and more.

Robot Automatic Calibration TwinTool - Image 17

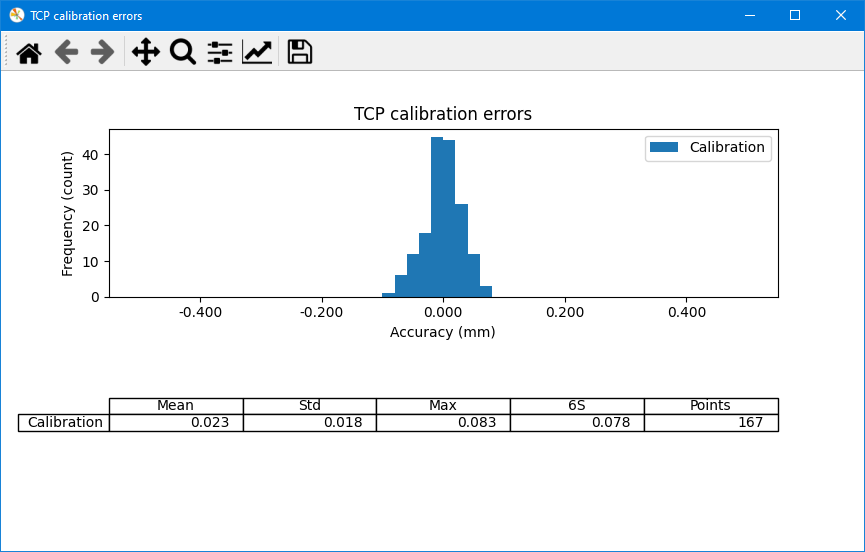

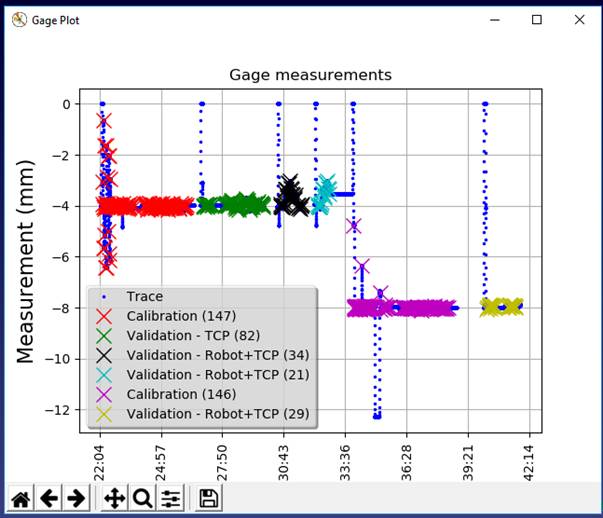

By clicking the Calibration button, you will see a chart showing the calibration results. The tool center point (TCP) is calculated using the nominal robot kinematics.

Robot Automatic Calibration TwinTool - Image 19

Robot Automatic Calibration TwinTool - Image 20

Validation

Once you have run the calibration sequence you can run some validation tests. These validation tests can be in the same location of the sensor or different locations.

Validate the tool calibration

Select Robot Automatic Calibration TwinTool - Image 21 Validate from the Wizard. The calibration data will be used to calculate the TCP (excluding robot calibration). You will then be directed to the Robot Automatic Calibration TwinTool - Image 22 Analyze tab of the wizard. The calculated TCP will be displayed, and some statistics will provide estimated errors for the calculated TCP.

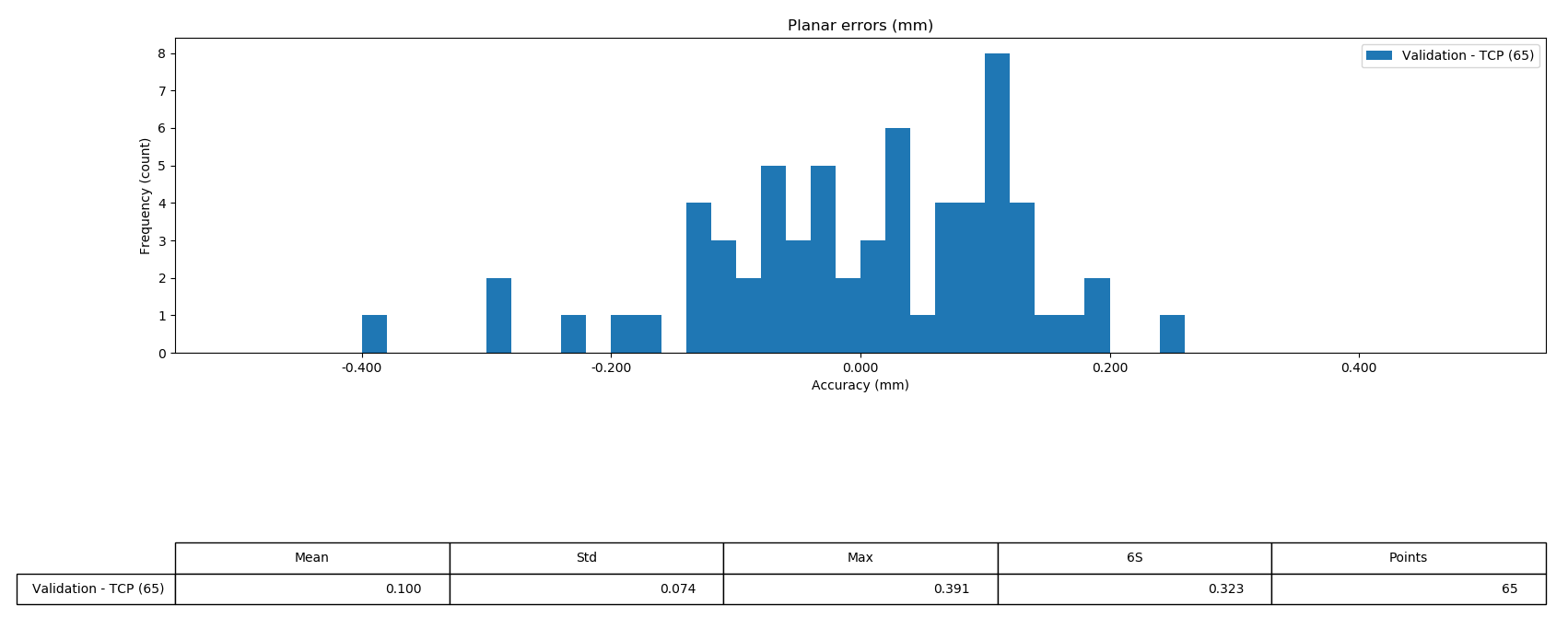

Select Validation to display a summary and some statistics about the results. These statistics correspond to the planar errors detected by the sensor.

Robot Automatic Calibration TwinTool - Image 23

Settings

This section describes additional settings and options that you can modify to better customize your calibrations and test the robot accuracy.

Calibration Settings

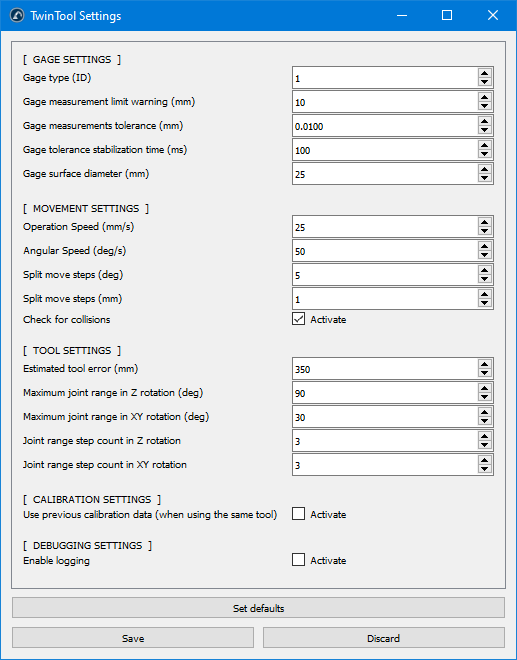

Select TwinToolAdvanced Settings to open the complete list of advanced settings. Most of these settings are prompted and set through the Wizard.

Robot Automatic Calibration TwinTool - Image 24
