Post Processors are a key step in Offline Programming because they can generate robot programs for a specific robot controller. Robot programming must follow vendor-specific programming rules, these rules are implemented in the post processor. A robot post processor defines how robot programs must be generated for a specific robot controller.

The conversion from the RoboDK simulation to a specific robot program is done by a Post Processor. Each robot is linked to a post processor which will define a specific robot programming style. The post processor is used when the program is generated offline, as shown in the Generate Program section (by right clicking a program, then, selecting Generate Robot Program).

RoboDK includes many post processors to support over 50 different robot manufacturers and controllers. Supported controllers are listed in the Available Post Processors section. Alternatively, it is possible to create customized post processor or modify an existing post processor. All available post processors are in the folder: C:/RoboDK/Posts/.

One post processor is a PY file (each post processor is defined by a Python script). It is possible to manually add, modify or delete the files in the Posts folder of RoboDK. If you have been provided a RoboDK post processor (PY file) it should be placed in the Posts folder so that it can be selected from RoboDK.

This section shows how to select, edit or create a post processor and use it with your robots in RoboDK. A quick introduction is available in the following video: https://www.robodk.com/help#PostProcessor

Note: Most robot brands have different controller versions. It is important to select the right post processor to generate appropriate robot programs supported by a specific robot controller.

Important: Each robot has a specific post processor assigned to it by default. The default selection might not generate appropriate programs for your robot controller. In that case, you may need to select a different post processor to make the programs run on your robot controller.

Select a Post Processor

You can easily select a post processor by right clicking a robot or a program. The choice of a post processor is assigned to a robot, therefore, changing the post processor assigned to a program will update the post processor used by all programs assigned to the same robot.

To select a post processor for a robot:

1.Right click a robot or a program

2.Select Select Post Processor

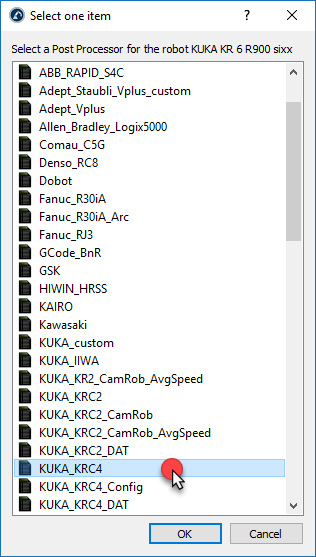

3.Choose a post processor from the list

4.Select OK.

Post Processors - Image 1 Post Processors - Image 2

The change is now applied, and the program can be generated again to see the result.

Note: The selection of a Post Processor is linked to a specific robot. Changing the post processor of a program will update the post processor for all programs linked to the same robot.

As an alternative, it is also possible to select the post processor by following these steps:

1.Open the robot panel (double click a robot)

2.Select Parameters

3.Select your post processor in the Robot brand box, as shown in the following image.

Tip: It is possible to quickly preview the output of each post processor by double clicking its PY file in the C:/RoboDK/Posts/ folder. More information available in the next section.

Post Processor Editor

You can easily modify post processor settings using a graphical user interface. The post processor editor allows you to modify variables defined in the post processor that are specific to your robot controller.

The post processor editor is a plugin that helps customize your post processors. You can easily download and install the plugin from the following page: https://robodk.com/addin/com.robodk.plugin.postprocessoreditor.

Follow these steps to open the post processor editor:

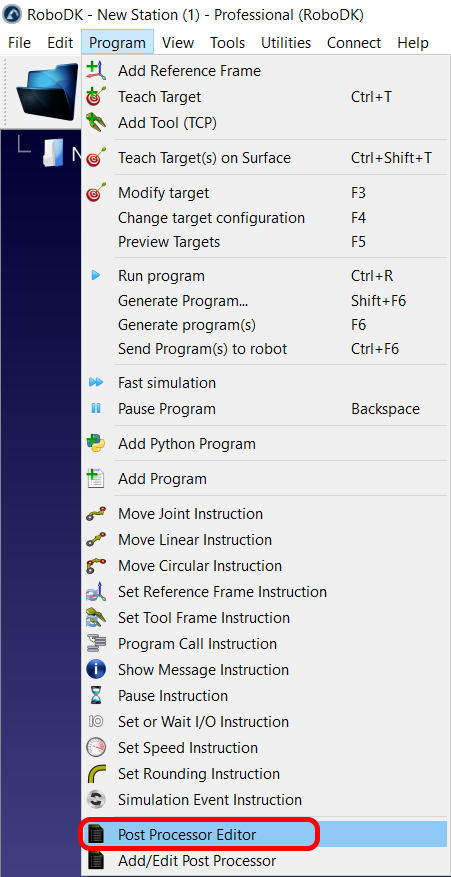

1.Select Program➔Post Processor Editor.

2.Select the post processor you want to customize.

3.Select OK. A new window will open, and you’ll see the variables you can modify.

4.Select Save Post Processor as…

5.Enter the name to save it.

Important: You should not override the default post processors. Instead, you can use your own unique names when you create your own post processors. The default post processors will be set back to its default value if you reinstall RoboDK.

Post Processors - Image 3 Post Processors - Image 4

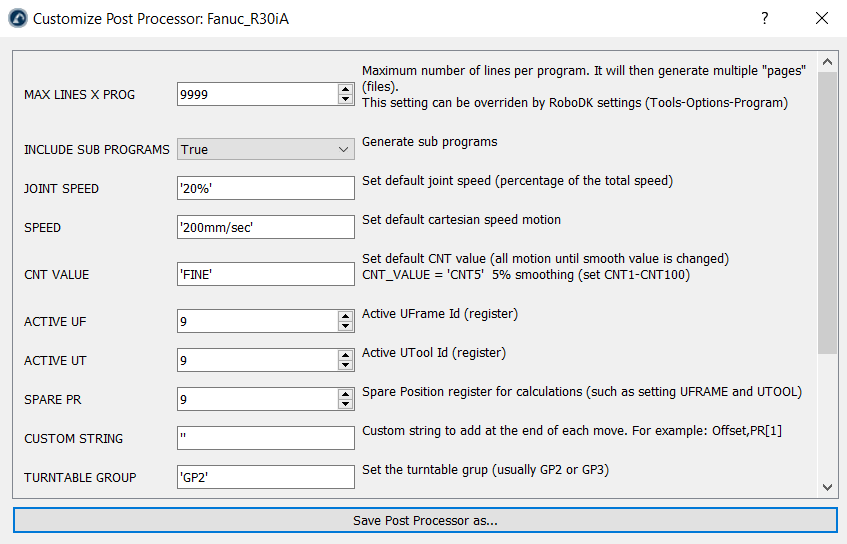

For example, if you select the Fanuc R30iA post processor you’ll see the window shown in the previous image.

Modify a Post Processor

You can modify existing post processors in RoboDK to customize the output of your robot programs or create new post processors. Most post processors don’t need editing but simply changing configuration flags to obtain the desired program output.

Make sure you have the source code of the post processor to edit it. Contact us if the post processor you are trying to edit is not editable (compiled).

Post processors must be placed in the folder C:/RoboDK/Posts/ so that they can be selected from RoboDK. The previous section describes how to link a specific robot to a post processor.

Each post processor is one PY file. It is possible to rename the file or copy files from/to the C:/RoboDK/Posts/ folder to share different post processors. To delete an existing post processor script, simply delete the corresponding PY file in the Posts folder.

Post processors can be edited using any text editor or a Python editor (Python IDLE). Using the Python editor allows to quickly debug and evaluate a sample program at the end of the file.

Video: Overview of post processors: https://www.youtube.com/watch?v=lbycCDjtOnE.

Python should be installed to test and use the post processors properly (Python is installed by default with RoboDK).

Follow these steps to modify an existing post processor:

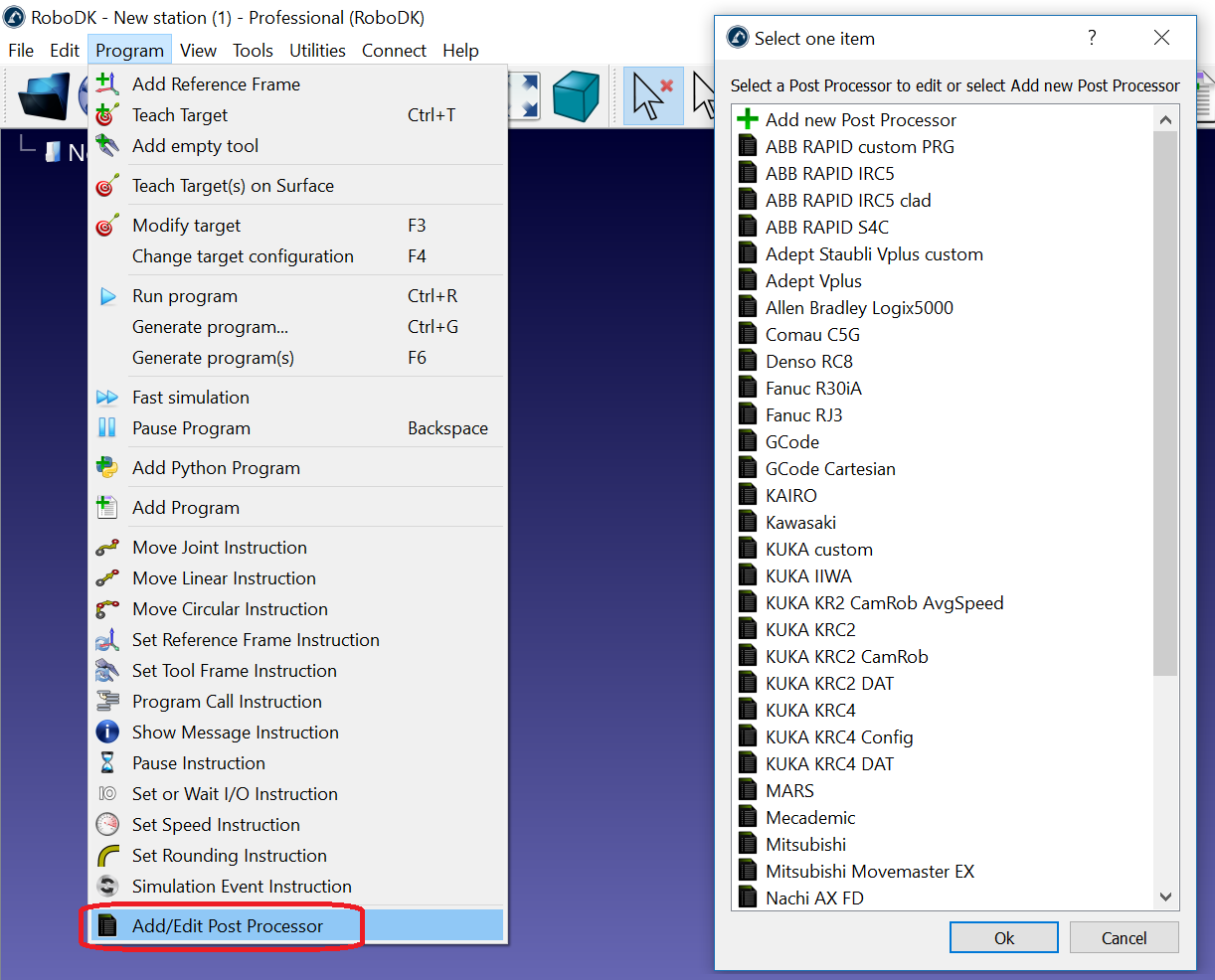

1.Select Program➔Add/Edit Post Processor

2.Select an existing post processor

3.Select OK. A text editor will open and the program.

4.Select Go➔Debug (F5) to preview the result. Make changes if necessary. Depending on the text editor you use you may have to select Run➔Run module (F5) instead.

Post Processors - Image 5

Alternatively, it is possible to edit a post processor manually:

1.Go to the post processors folder: C:/RoboDK/Posts/

2.Open a PY file with Python IDLE (right click ➔ Edit with IDLE) or other text editor.

3.Make the desired changes.

4.Run the file to test the result: Select Run➔Run module (F5 by default) from Python IDLE.

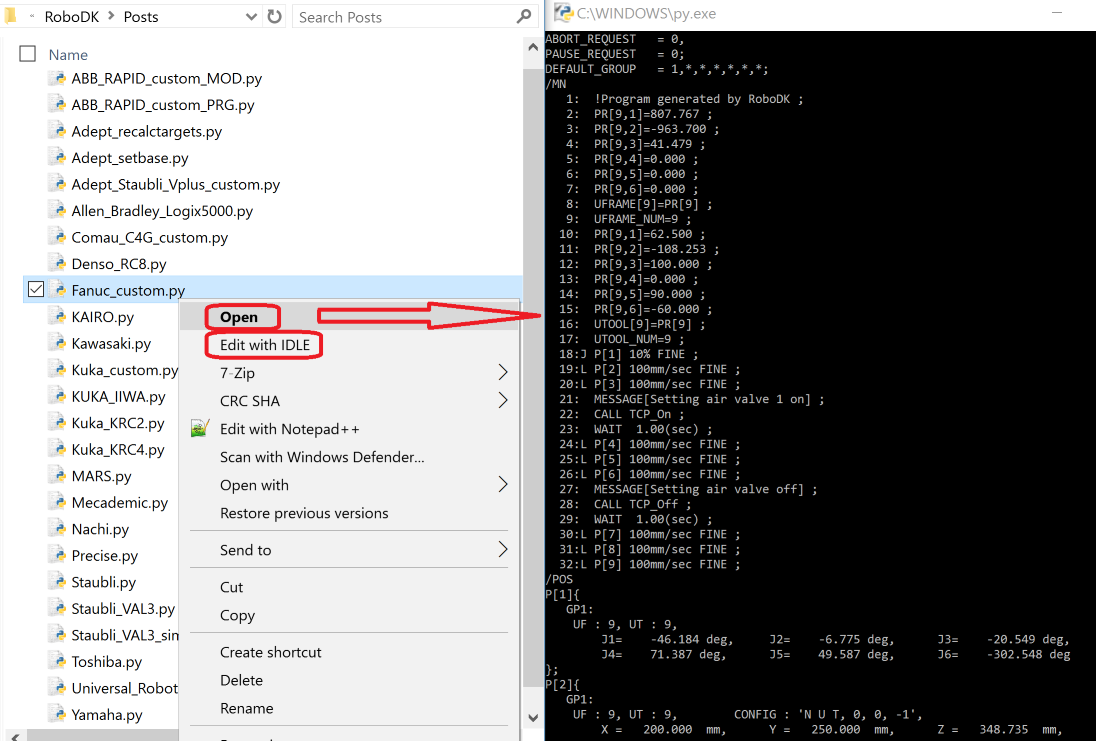

Alternatively, it is possible to edit this file using a text editor and run it with Python by double clicking it.

Post Processors - Image 6

Tip: It is possible to change the default editor for post processors in RoboDK by selecting Tools➔Options➔Other and providing the editor path in the Python editor command.

Important: You should not override the default post processors. Instead, you can use your own unique names when you create your own post processors. The default post processors will be set back to its default value if you reinstall RoboDK.

Important: If you use a text editor such as Notepad++ and Python 3.6 or earlier it is important to replace tabs by 4 spaces. Otherwise, you’ll see a TabError saying that there is an inconsistent use of tabs and spaces in indentation.

Modification Examples

This section will show you how you can make small changes to an existing post processor. Most post processors have some variables that can be easily modified to change or activate vendor-specific robot programming features.

As an example, the following changes will be made to existing KUKA and ABB post processors:

● Generate a program with its subprograms as one file and force programs to have 3000 lines of code per program at most. Large programs will be divided into smaller programs and called sequentially.

● Set a joint movement to generate the motion command using joint angles information.

● Override the maximum speed to 500 mm/s. Even if the robot is programmed to move faster, the speed will be limited to 500 mm/s in the post processor.

The following sections show how to make the suggested changes on a text editor.

Generate all programs in one file

This example will show you how you can change the default behavior of the KUKA KRC4 post processor to generate a main program with its subprograms in the same file.

Make sure the post processor editor plug-in is enabled and follow these steps to make the post processor modifications:

1.Select Program➔Post Processor Editor.

2.Select the post processor you want to customize (KUKA KRC4).

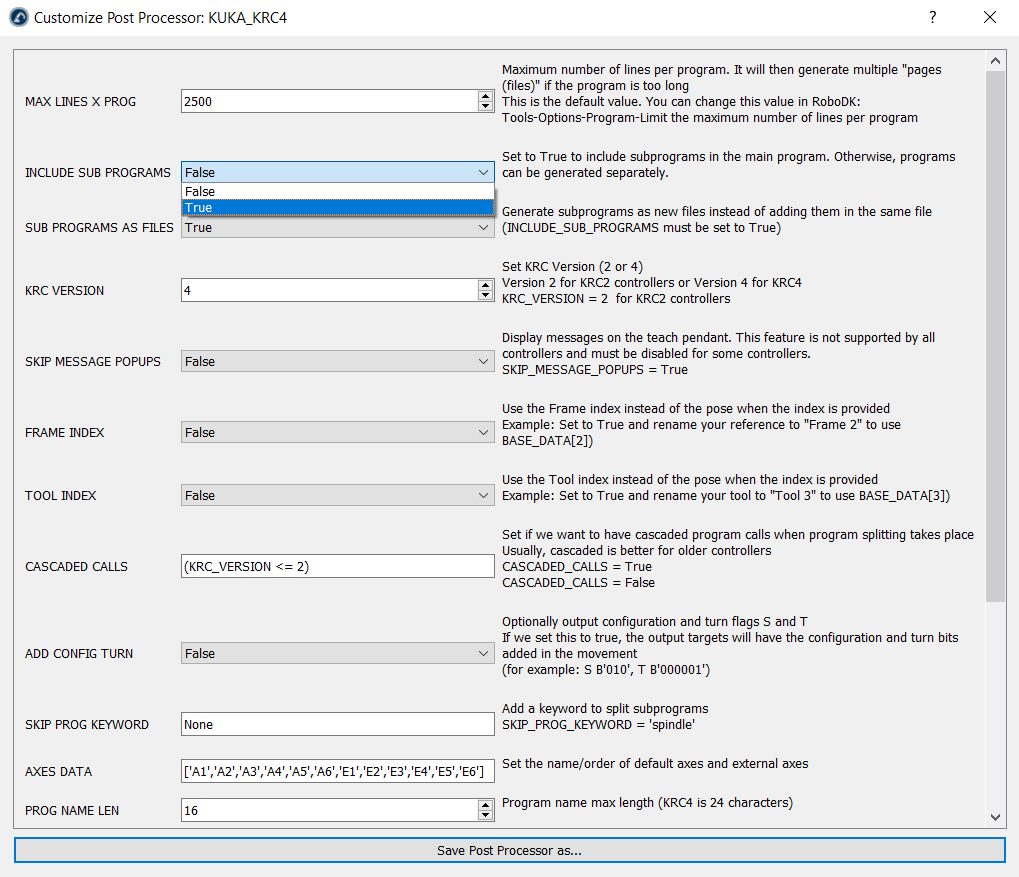

3.Select OK. A new window will open, and you’ll see the variables you can modify as shown in the following image.

4.Set the Include Sub Programs variable to True instead of False.

5.Select Save Post Processor as…

6.Enter a new name to save it (the default name uses the modification date).

Post Processors - Image 7

You should now have a new post processor in the Posts folder of RoboDK. You can now update your project to use this new post processor by following these steps:

1.Right click your robot.

2.Select Select Post Processor.

3.Select the new post processor you created.

4.Generate your programs again to see the result.

You could also make these changes using a text editor. Follow these steps to change the default Python code of the post processor:

1.Select Program➔Add/Edit Post Processor

2.Select your post processor. For example, for KUKA KRC4 select KUKA_KRC4.

3.Select OK. The post processor will be shown in a text editor.

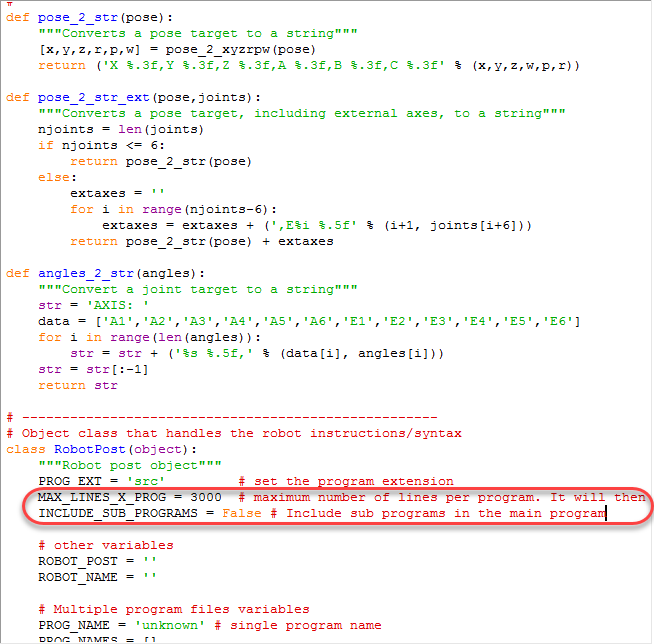

4.Set the variable MAX_LINES_X_PROG to 3000.

5.Set the variable INCLUDE_SUB_PROGRAMS to True.

Post Processors - Image 8

Note: The variable MAX_LINES_X_PROG may be overridden if the maximum lines per program is specified from the RoboDK Program Options menu. You could also modify the __init__ section of the post processor to avoid changing this variable from the RoboDK settings.

Force a speed limit

This example will show you how you can impose a speed limit of 500 mm/s and avoid using higher speeds when generating a program with RoboDK.

In this example we assume we are using a KUKA KRC2 or KRC4 controller:

1.Select Program➔Add/Edit Post Processor

2.Select your post processor. For example, for KUKA KRC4 select KUKA_KRC4.

3.Select OK. The post processor will be shown in a text editor.

4.Locate the setSpeed function definition (def setSpeed)

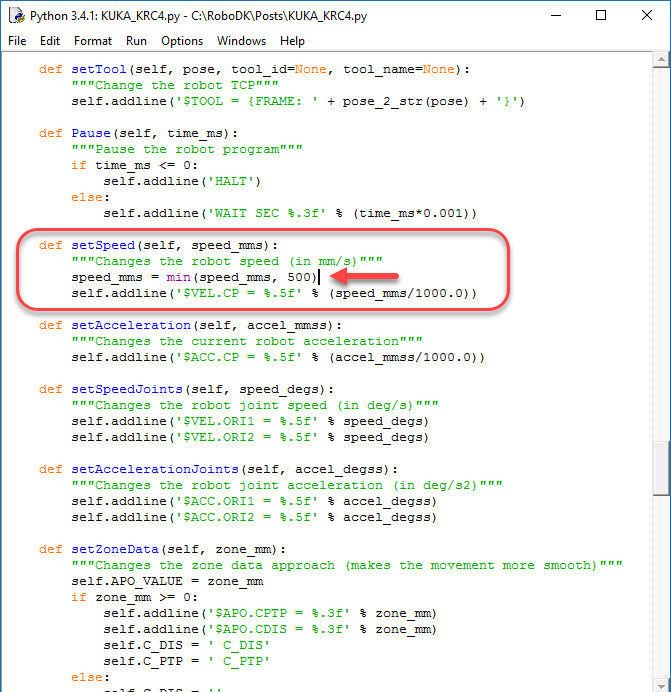

5.Add the following line to make the maximum speed 500 mm/s. The line needs to be added before generating the $VEL.CP output which will change the speed in m/s:
speed_mms = min(speed_mms, 500)

Post Processors - Image 9

Note: A default speed of 200 mm/s is defined in the HEADER variable, at the top of the post processor ($VEL.CP=0.2). This default speed can also be changed if the speed is not modified from RoboDK.

Note: If you don’t have the source code of the post processor you can still add your custom function to override the default behavior.

Custom filter for frames

This section shows how you can customize setting the reference frame of an existing post processor. For example, setting a custom reference frame for a KUKA robot.

You can use compiled post processors and easily reimplement only necessary functions (for example, setFrame setTool or setSpeed).

Note: Make sure that the name of your custom postprocessor is different from the name of the reference post processor you are using. When you update RoboDK, the installer will override the default post processors back to the original version. However, the installer won’t delete or alter custom post processors in the Posts folder.

In this example, we assume that we want to customize how the base is defined for a KUKA controller. For example, if you want to output the following line when setting the reference frame:

BASE_DATA[8] = {FRAME: X:2000, Y:0, Z:0, A:0, B:0, C:0}

BAS (#BASE,8)

You simply need to create a new file called KUKA_Custom_Post.py in the C:/RoboDK/Posts/ folder with this the following few lines, which uses the default KUKA_KRC2 post processor and overrides setting the reference frame (setFrame function):

from KUKA_KRC2 import RobotPost as MainPost

class RobotPost(MainPost):

def setFrame(self, pose, frame_id, frame_name):

"""Change the robot reference frame"""

self.addline('; BASE_DATA[8] = {FRAME: %s}' % (self.pose_2_str(pose)))

self.addline('BAS (#BASE,8)')

However, we could add custom filters based on certain criteria to filter between using the default behavior and using a custom implementation. The post processor file could then be modified as follows:

from KUKA_KRC2 import RobotPost as MainPost

class RobotPost(MainPost):

def setFrame(self, pose, frame_id, frame_name):

"""Change the robot reference frame"""

if frame_name == "Frame 4": # Enter any condition here

# Trigger the call to the default method (same as not overriding the function)

super(MainPost, self).setFrame(pose, frame_id, frame_name)

return

# Implement a custom setFrame

self.addline('; ---- Setting reference: %s ----' % frame_name)

self.addline('; BASE_DATA[8] = {FRAME: %s}' % (self.pose_2_str(pose)))

self.addline('BAS (#BASE,8)')

self.addline('; --------------------------')

When you generate programs for KUKA KRC controllers, there are many ways you can set your coordinate system or reference frame. The following definition of setFrame shows an alternative implementation with different options:

def setFrame(self, pose, frame_id, frame_name):

"""Change the robot reference frame"""

self.addline('; ---- Setting reference: %s ----' % frame_name)

# option 1: Build the kinematics based on the MACHINE_DEF array and the provided offset

#self.addline('$BASE = EK (MACHINE_DEF[2].ROOT, MACHINE_DEF[2].MECH_TYPE, { %s })' % self.pose_2_str(pose))

# option 2: Build the kinematics based on the EX_AX_DATA array and the provided offset

#self.addline('$BASE=EK(EX_AX_DATA[1].ROOT,EX_AX_DATA[1].EX_KIN, { %s })' % self.pose_2_str(pose))

# Option 3: Build the kinematics based on the EX_AX_DATA array and the pre-defined offset

#self.addline('; Using external axes')

#self.addline('; $BASE=EK(EX_AX_DATA[1].ROOT,EX_AX_DATA[1].EX_KIN,EX_AX_DATA[1].OFFSET)')

#self.addline('; $ACT_EX_AX= %i' % (self.nAxes - 6))

# Option 4: Use the BAS(#ex_BASE) init function from the BAS.src file

#self.addline('; BASE_DATA[%i] = {FRAME: %s}' % (self.BASE_ID, self.pose_2_str(pose)))

#self.addline('BAS(#ex_BASE,%i)' % self.BASE_ID)

# Option 5: Use the BAS(#BASE) init function from the BAS.src file

self.addline('; BASE_DATA[%i] = {FRAME: %s}' % (self.BASE_ID, self.pose_2_str(pose)))

self.addline('BAS (#BASE,%i)' % self.BASE_ID)

# Option 6: Directly take the base from the BASE_DATA array (usually what the BAS(#BASE) does)

# self.addline('$BASE=BASE_DATA[%i]' % self.BASE_ID)

self.addline('; --------------------------')

Impose a movement using joint angles

This section will show you how you can modify an existing post processor to force an axial movement using joint values instead of Cartesian values.

In this example we’ll apply this change to an ABB IRC5 robot controller.

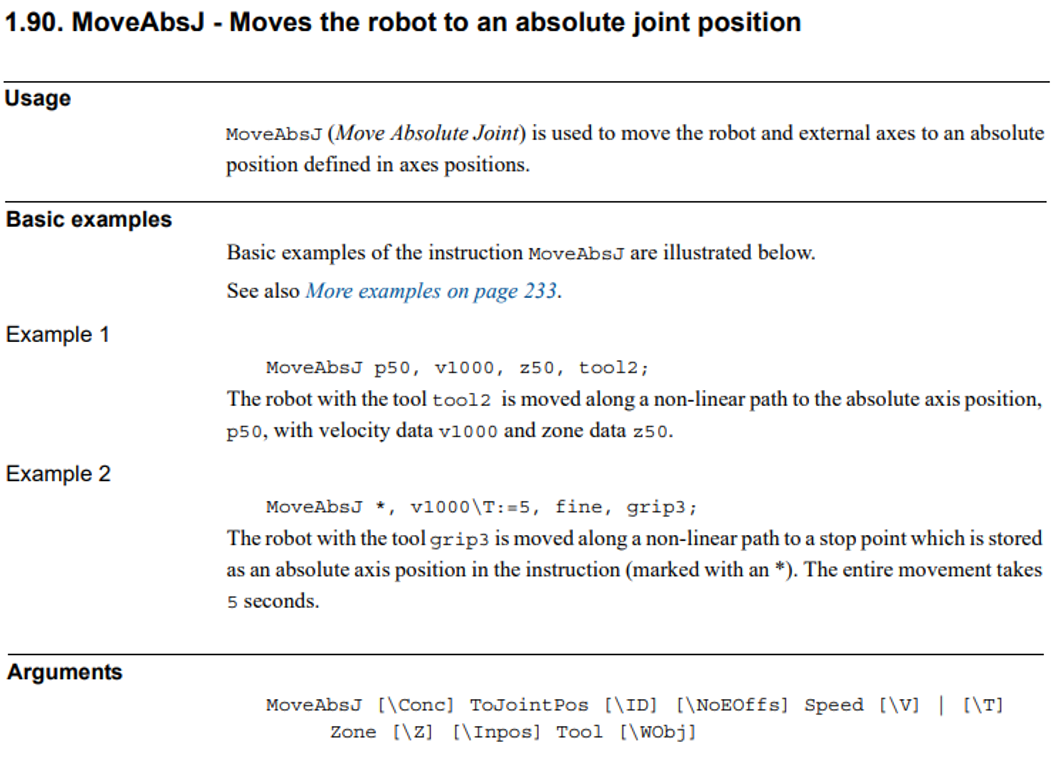

1.Find the programming manual of your robot controller. In this example we use the ABB IRC5 RAPID programming manual.

2.Look for the joint movement instructions. In this case, ABB’s absolute joint movement command is called MoveAbsJ. This command requires a jointtarget variable that defines the joint axes.

Post Processors - Image 10

3.Select Program➔Add/Edit Post Processor and select the post processor you are currently using to modify it. If you are currently using a customizable post processor it will be selected by default.

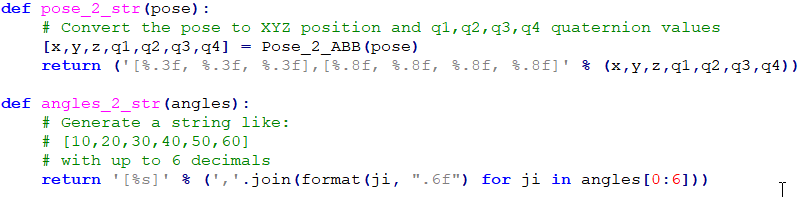

4.You should look for the MoveJ function inside the post processor. This function defines the way post processors generate the joint motion commands. Alternatively, RoboDK uses MoveL for linear movements. Using Python programming language, modify the line that is added to the program file to provide joint angle information, as shown in the following image.

Post Processors - Image 11

5.Finally, you may need to modify the way the post processor converts the joint angles or the pose to a string. The functions angles_2_str and pose_2_str define how the joint angles and a pose, respectively, is converted to text.

Post Processors - Image 12

Most RoboDK post processors use joint data for joint movements and Cartesian coordinates for linear movements. It is recommended to always start the first point in a sequence of linear movements as a joint movement, specifying joint coordinates. This avoids starting a program with the wrong robot configuration and reaching a singularity or axis limits.

Note: All RoboDK post processors use the robodk.py module by default. This module includes useful tools to convert from poses to Euler angles for many robot controllers. Use the notation corresponding to your robot controller. More information available in the Reference Frames section and the robodk.py module.

Note: More than one robot manufacturer can use the same Euler angle notation. For example, Fanuc and Motoman both use the same X➔Y➔Z notation, Stäubli and Mecademic use the same X➔Y’➔Z’’ notation, etc.

Important: If you specify a movement using a pose (for example, using cartesian coordinates and Euler or Quaternion information), the position that the robot will attain will depend on the active tool and reference frames. The poses of the tool and reference frames must be properly specified in the program. This is done through the setTool and setFrame functions respectively.

Available Post Processors

RoboDK provides over 100 post processors by default to support generating robot programs for over 40 robot manufacturers. Some post processors can be further customized to generate programs with a specific format.

You can find the complete list of available post processors in the RoboDK Library by navigating to https://robodk.com/posts. You can also select Tools➔Open Robot Library from the main toolbar in RoboDK.

By default, the following post processors are available in RoboDK:

● ABB RAPID IRC5: for ABB IRC5 robot controllers.

● ABB RAPID IRC5 Robtargets: for ABB IRC5 robot controllers and generates robtarget names.

● ABB RAPID S4C: for ABB S4C robot controllers.

● Adept Vplus: for Adept V+ programming language.

● Allen Bradley Logix5000: for Allen Bradley Logix5000 PLC.

● Annin Robotics: for AR3 and AR4 robots.

● Aubo: for AUBO robot controllers.

● Aubo ARCS: generates code (.lua and .pro) for AUBO ARCS robotic controllers.

● Automata: for Automata EVA robots.

● Borunte: for Borunte robot arms. Generates zip-package with necessary files for BRTIRUS robot controllers.

● Brooks: for PreciseFlex robots.

● CPR: produces XML-formatted code suitable for CPR robotic systems.

● CSV: generates simple CSV-formatted files for generic robotic and automation controllers. This post processor is versatile and can be used in applications requiring straightforward data import and export.

● CLOOS: for CLOOS robot controllers.

● Comau C5G: for Comau C5G robot controllers.

● Denso PAC: for Denso RC7 (and older) robot controllers (PAC programming language).

● Denso RC8: for Denso RC8 (and newer) robot controllers (PacScript programming language).

● Dobot: for educational Dobot robots.

● Doosan: for Doosan collaborative robots.

● Elite: The Elite Robots CS Task post processor allows you to generate code for CS controllers.

● Epson: for Epson robot controllers.

● Fairino: produces .lua files and supports the Fairino FR series of robots.

● Fanuc R30iA: for Fanuc R30iA and R30iB robot controllers.

● Fanuc R30iA_Arc: for Fanuc Arc welding.

● Fanuc RJ3: for Fanuc RJ3 robot controllers.

● GCode BnR: for B&R robot controllers.

● GSK: for GSK robots.

● HCR: for Hanwha robot controllers.

● HIWIN HRSS: for HIWIN robots.

● Hyundai: for Hyundai robot controllers.

● KAIRO: for Keba Kairo robot controllers.

● Kinova: for Kinova robots.

● Kawasaki: for Kawasaki AS robot controllers.

● KUKA IIWA: for KUKA IIWA sunrise programming in Java.

● KUKA KRC2: for KUKA KRC2 robot controllers.

● KUKA KRC2_CamRob: for KUKA CamRob milling option.

● KUKA KRC2_DAT: for KUKA KRC2 robot controllers including DAT data files.

● KUKA KRC4: for KUKA KRC4 robot controllers.

● KUKA KRC4_Config: for KUKA KRC4 robot controllers with configuration data in each line.

● KUKA KRC4_DAT: for KUKA KRC4 robot controllers including DAT data files.

● Mecademic: for Mecademic’s script code required by the Meca500 robot.

● Mecademic Python: it generates a Python script that can control the Mecademic Meca500 robot remotely.

● Mitsubishi: for Mitsubishi robot controllers.

● Motoman/Yaskawa: for different Motoman robot controllers using Inform II and Inform III (JBI).

● Nachi AX FD: for Nachi AX and FD robot controllers.

● Omron: for Omron/Techman robot controllers.

● OTC: for Daihen OTC robot controllers.

● Panasonic: For Panasonic PRG programs (requires Panasonic G2PC tools to compile ASCII files to binary files).

● Robostar: for Robostar robot controllers.

● Siasun: for Siasun robot controllers.

● Siemens_Sinumerik: for Siemens Sinumerik ROBX robot controller.

● Staubli VAL3: to generate Staubli VAL3 robot programs (CS8 controllers and later). It inlines the robot movements.

● Staubli VAL3_Machining: for Staubli VAL3 controllers that have the Machining HSM option.

● Staubli S6: for Staubli S6 robot controllers.

● Toshiba: for Toshiba robots.

● Techman: for Omron/Techman robot controllers.

● Universal Robots: for UR robots, it generates linear movements as pose targets.

● Universal Robots URP: for UR robots, it generates a URP that can be loaded and modified in Polyscope (the UR robot controller).

● Universal Robots_RobotiQ: for UR robots including support for RobotiQ gripper.

● Universal Robots_MoveP: for UR robots, it generates linear movements as MoveP commands.

● Yamaha: for Yamaha robots.

Note: Some robot controllers, such as Fanuc and Panasonic controllers, require specific software or controller options provided by the manufacturer to support loading the program files generated by RoboDK. For example, Panasonic robots require G2PC tools to convert the program file generated by RoboDK to a binary file that can be read by the controller. Some Fanuc robots support ASCII files generated by RoboDK, alternatively, you can compile programs using Roboguide’s maketp utiliy. Learn more in the LS to TP Fanuc compilation section.

Note: The list and behavior of the default RoboDK post processors changes from time to time. This means that the generated code using the same post processor may be different with different versions of RoboDK. To prevent unexpected changes of your generated code you should make sure to create a unique copy or customize your post processors so that your generated code does not change when you update or reinstall RoboDK.

Reference

This section includes useful references related to post processors.

The following video shows an overview of Post Processors in RoboDK: https://robodk.com/help#PostProcessor

Reference documentation for each method in the post processor is available in the RoboDK API section of the documentation: http://robodk.com/doc/en/PythonAPI/postprocessor.html

Most post processors use the robodk.py module: http://robodk.com/doc/en/PythonAPI/robodk.html#robodk.Mat. The robodk.py module provides tools for pose operations (multiplications, inverse, …) and conversions between poses to Euler angles in different formats, among other things.

Note: By default, Python is installed with RoboDK and the robodk.py module is added to the Python path.

Documentation is available online to learn about Python programming:
https://docs.python.org/3/

When a program is generated, a preprocessed/universal Python program is generated and saved in a local temporary folder. The preprocessed program is linked with the right post processor (selected by the user in RoboDK). The post processor defines a RobotPost class that generates the desired code.

The precompiled programs are executed with Python.

Tip: On Windows, the preprocessed Python files are saved in your temporary folder (for example: C:/Users/username/AppData/Local/Temp folder, or type %TEMP% in windows file explorer). These programs can also be used for debugging new post processors.
