Robot Cutting

Introduction

This example will show you how you can use RoboDK for 5-axis robot machining using the Mastercam plugin. In this example the goal is to trim the excess material around a car hood using a Fanuc robot with a cutting tool mounted on a spindle.

With the RoboDK plug-in for Mastercam you can quickly set up robot machining projects direclty from Mastercam to RoboDK. This plug-in allows you to program more than 50 different robot manufacturers and 500 robots.

The RoboDK plug-in for Mastercam supports NCI (native preprocessed Mastercam files) and standard APT CLS and G-code files. The plug-in is free if you have purchased a RoboDK license.

5-Axis robot cutting

To start the project, you should select RoboDK’s 5-axis cutting example in the default library.

RoboDK settings

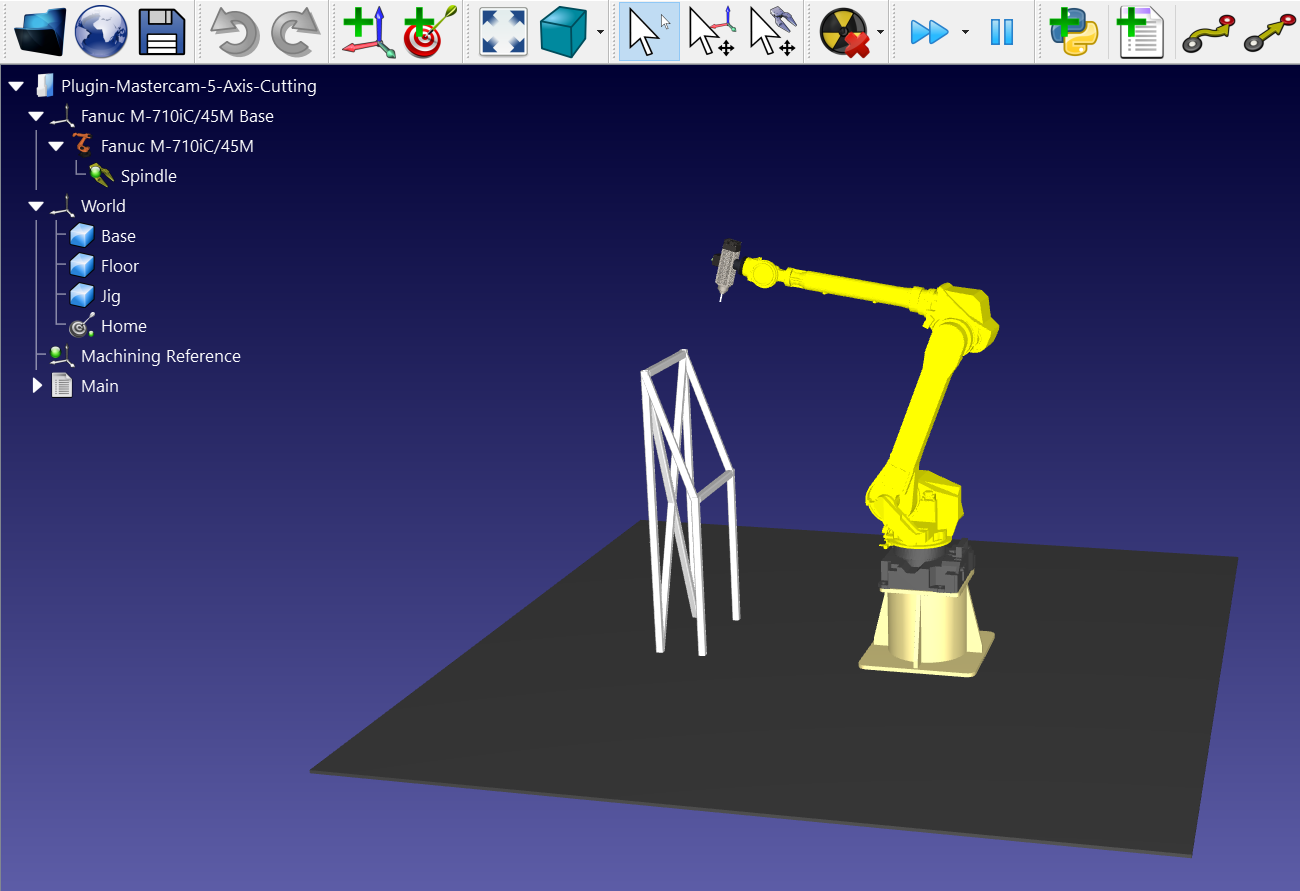

This example uses the Fanuc M-710iC/45M robot, a cutting tool mounted on a spindle and a jig to hold the the car hood.

Load the station:

1.Select File Example 5 Axis Cutting - Image 1 Open

2.Locate the 5-axis cutting example fromRoboDK’s examples section:
C:/RoboDK/Examples/ Plugin-Mastercam-5-Axis-Cutting.rdk.

Example 5 Axis Cutting - Image 2

Now that you have loaded the station you can open Mastercam and load the project C:/RoboDK/Other/Plugin-Mastercam/Examples/Car hood.mcam.

Cutting toolpath in Mastercam

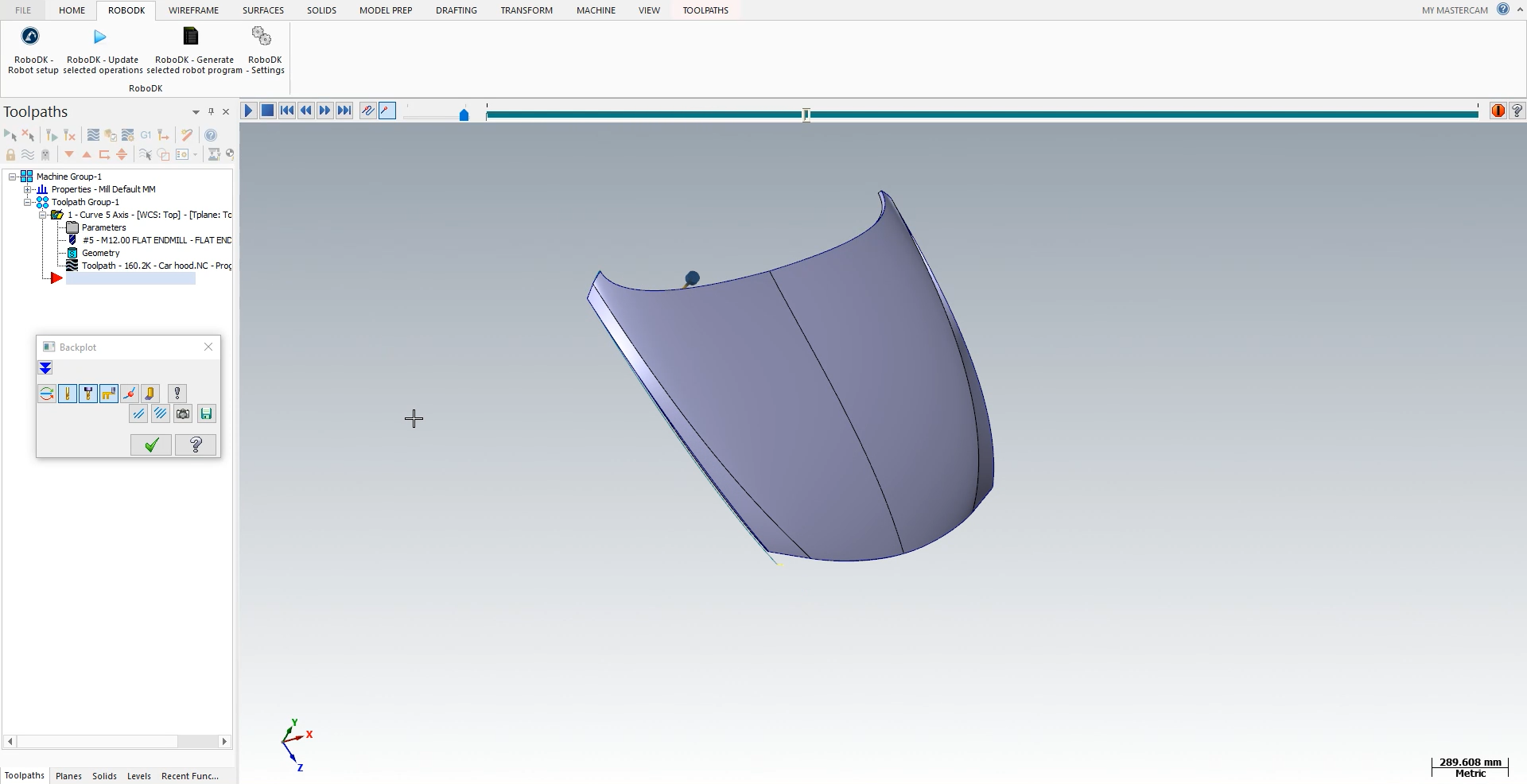

Open your 3D object in Mastercam and launch the cutting simulation. You can see that the software adjusted the orientation of the tool to match the cutting surface.

Example 5 Axis Cutting - Image 3

Follow the next steps to load your part into RoboDK:

1.Select the RoboDK tab and select RoboDK – Robot setup.

2.Select Load Part.

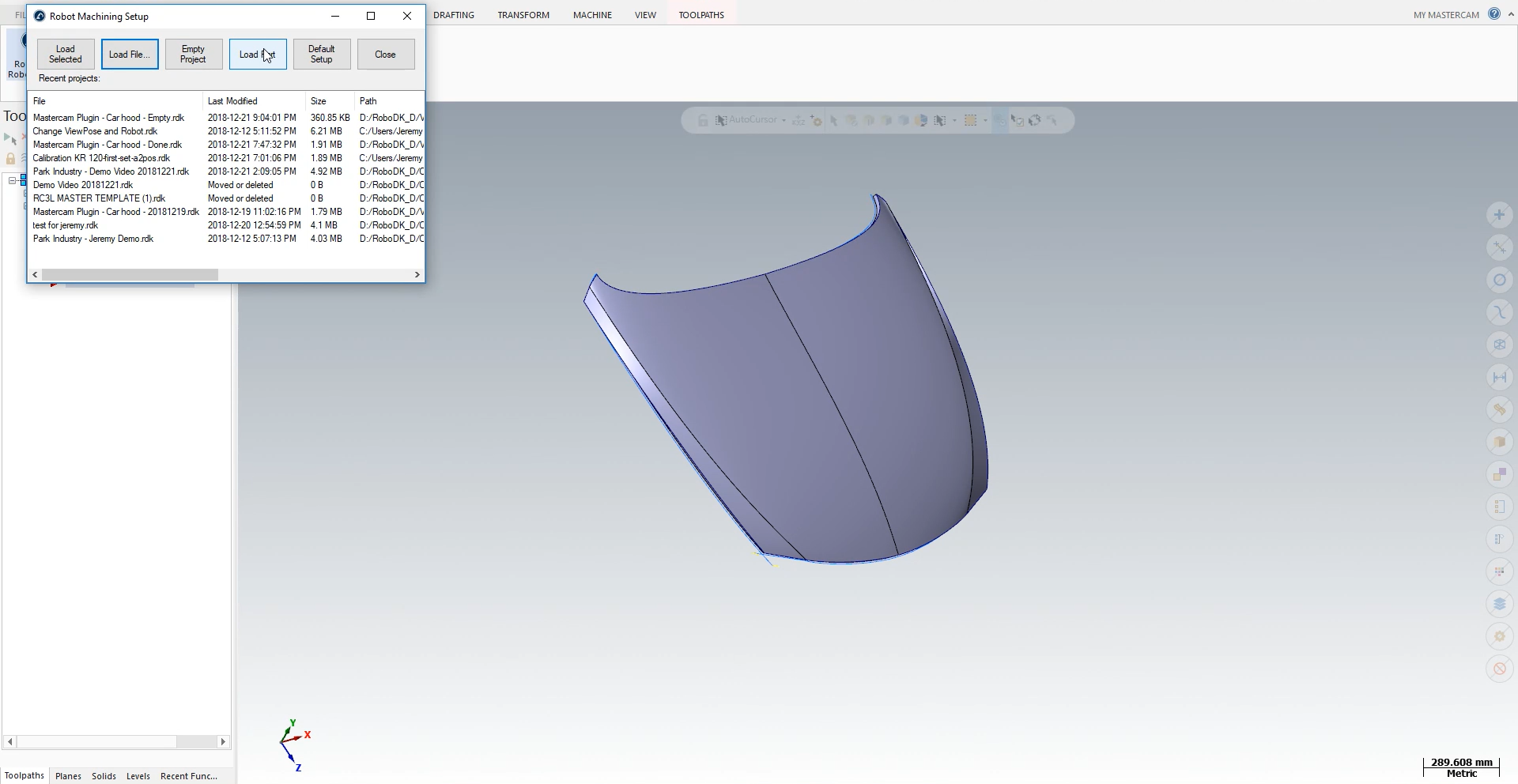

Example 5 Axis Cutting - Image 4

You should see the part loaded on the active reference frame (Machining Reference) on the jig of the RoboDK station.

The next step is to import the cutting path from Mastercam to RoboDK.

1.Select the RoboDK tab in Mastercam.

2.Select RoboDK – Update selected operations.

3.Go to RoboDK.

Robot cutting in RoboDK

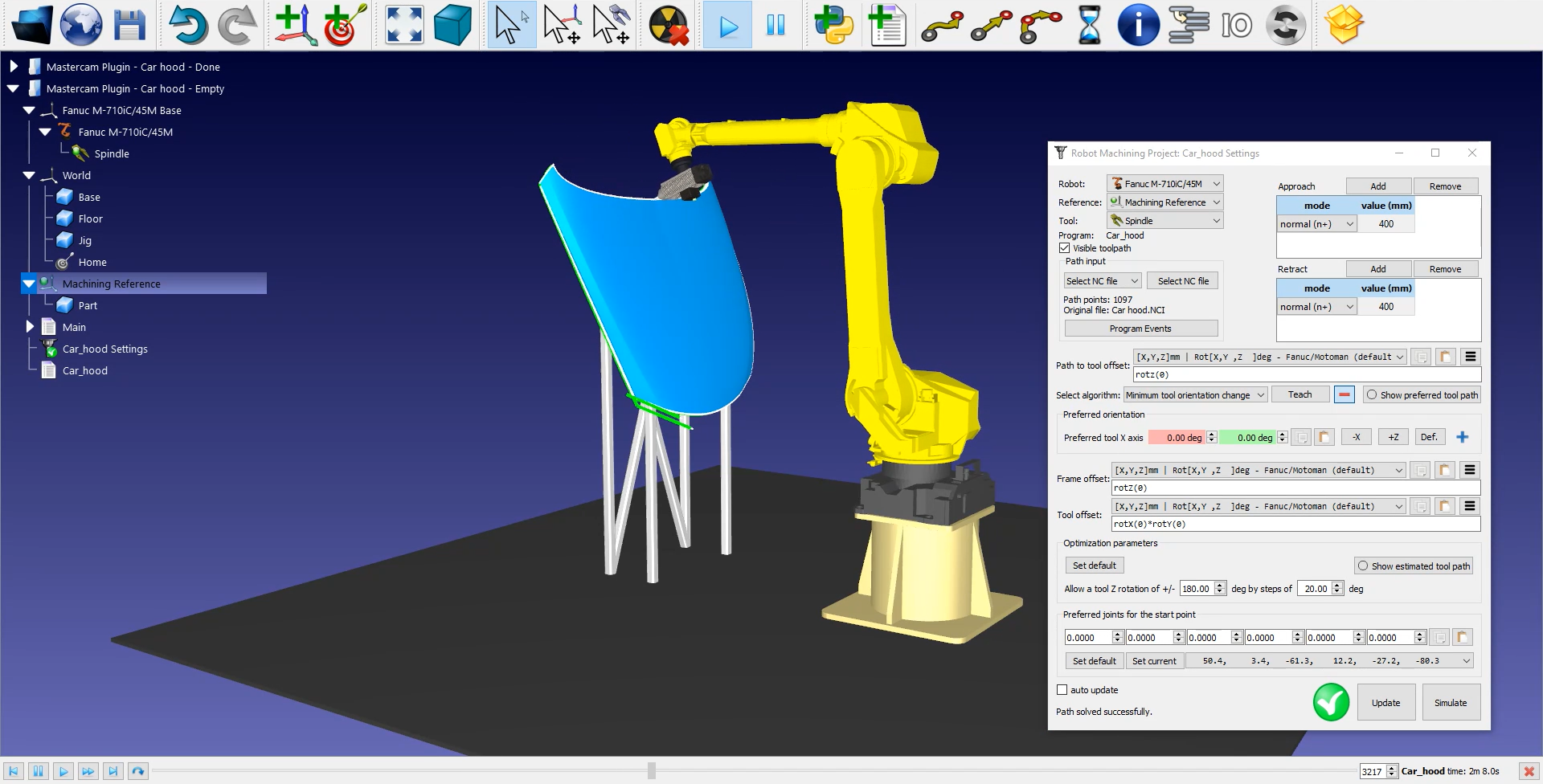

Once the robot cutting path has been imported in RoboDK you should see the cutting toolpath attached to the mold reference of your RoboDK station. In the Example 5 Axis Cutting - Image 5Car hood Settings, make sure that you select the correct robot, reference frame and tool.

You can also adjust the value of the approach and retract movements before and after the cutting path. A 400 mm approach/retract should be safe this example. Those movements are now 4 times longer than the default approach/retract and will help avoiding any collision with the part.

You can also adjust the orientation of the part in the lower section of the menu.

The next step is to verify if the order in which the path sections will be executed is correct by selecting Example 5 Axis Cutting - Image 6 Car hood Settings Update Simulate. In this example it is not necessary to readjust the order.

Example 5 Axis Cutting - Image 8

To generate your robot program, make sure to use the right post processor. Double click on the Example 5 Axis Cutting - Image 9Fanu M-710iC/45M robot and click on Select Post Processor Fanuc R30iA.

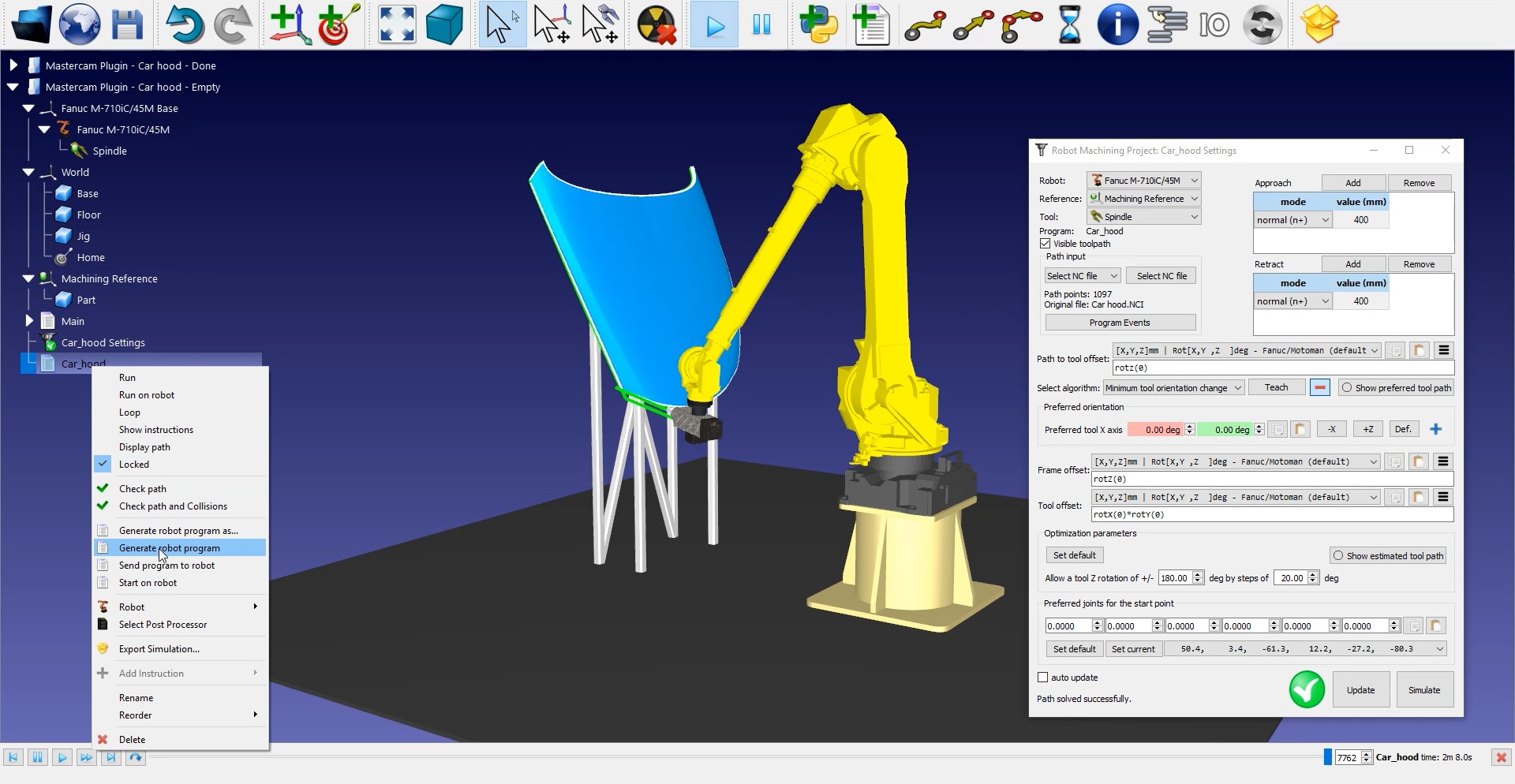

Finally, right click on Example 5 Axis Cutting - Image 10Car hood Generate robot program or press F6.

The Fanuc LS and/or TP files are now ready to be transferred to your robot controller.

Example 5 Axis Cutting - Image 11
